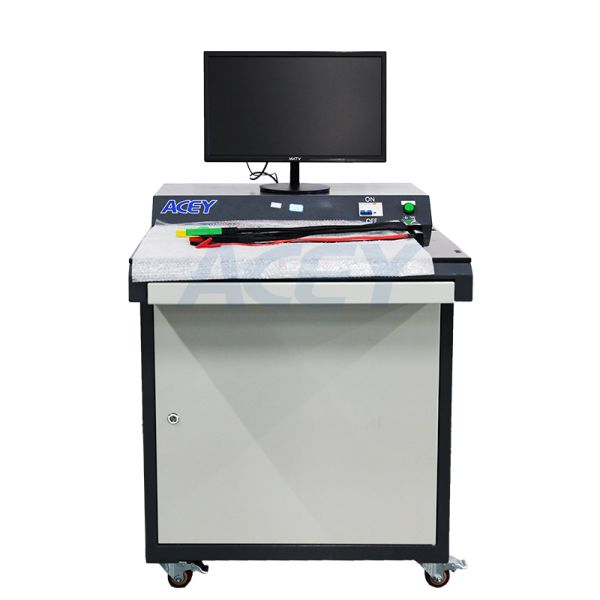

1–24S 100A Charge 200A Discharge Lithium Ion Battery BMS Tester

  • 1
  • 2
  • 3

Warranty : 1 Year Warranty with Lifetime Support

After-sales Service : 24/7 Technical Support

Supported Series : 1-24S

Overcharge Current Protection Range : 0.1~100A

Overdischarge Current Protection Range : 0.1~200A

Current Resolution : 1 mA

Current Accuracy : ±0.1%

Input Power Supply : 180~240V 50/60HZ

Brand Name : ACEY

Model Number : ACEY-BP24-100A200A

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : USD 2990~8250/Set

Payment Terms : T/T,PayPal,L/C,Western Union

Supply Ability : 200 Sets/Month

Delivery Time : 7~35 Days

Packaging Details : Plywood Case

Contact Now

1–24S 100A Charge 200A Discharge Lithium Ion Battery BMS Tester

Product Description

ACEY-BP24-100A200A BMS tester is developed for functional and performance testing of hardware protection boards, as well as selected software-based protection boards, used in lithium and lithium cobalt oxide battery systems. It is designed for both production lines and quality inspection, offering a high level of automation with a clear multi-language interface that allows fast operation and stable, high-accuracy testing.

The BMS tester supports a full range of protection and electrical performance checks, including overcharge protection and reset, overdischarge protection and reset, charge and discharge overcurrent protection, internal resistance, self-consumption, short-circuit protection, protection delay time for overcharge, overdischarge, and overcurrent, as well as cell balancing current and balancing voltage. A total of 13 key parameters can be verified in a single test sequence, ensuring the protection board meets design and safety requirements before use.

Product Features

  • Programmable cycling from 1 to 9,999 times for continuous testing
  • Laboratory mode with adjustable voltage for any single cell
  • Stable, continuous charge and discharge current output
  • Full log tracking with operation and fault records for traceability
  • Test data saved in Excel format with a clear HMI interface
  • RS232 communication for stable, real-time data acquisition
  • Supports accuracy and software calibration
  • Barcode scan start and MES system integration
  • Optional functions: active balancing, adjustable balancing current, communication protocol testing

Main Test Functions

No. Function Range Accuracy unit
1 Self-consumption of single cell 0--500 ±0.1 uA
2 Self-consumption 0--5000 ±1 uA
3 Overcharge voltage 500--5000 ±1 mV
4 Overcharge recovery voltage 500--5000 ±1 mV
5 Overcharge voltage protection delay 0--10000 ±1 mS
6 Overdischarge voltage 500--5000 ±1 mV
7 Overdischarge recovery voltage 500--5000 ±1 mV
8 Overdischarge voltage protection delay 0--10000 ±1 mS
9 Overcharge protection current protection value 0.1--100 ±0.01 A
10 Overcharge protection current protection delay 0--20000 ±1 mS
11 Overdischarge protection current protection value 0.1--200 ±0.01 A
12 Overdischarge protection current protection delay 0.1--20000 ±1 mS
13 Equalization function 500--5000 ±1 mV
opening voltage
14 Equalizing current 1--500 ±1 mA
15 Charging current 0.1--120 ±0.01 A
16 Discharging current 0.1--120 ±0.01 A
17 Charging time 0--100 ±1 S
18 Discharging time 0--100 ±1 S
19 The difference of single cell self-consume 0-500 ±0.1 uA
20 Resistance 0-999 ±1 mΏ
21 Short circuit protection time 0--5000 ±1 uS
22 The charging voltage of single cell 500--5000 ±1 mV
23 The discharging voltage of single cell 500--5000 ±1 mV
24 Open circuit voltage 120000 ±1 mV
25 Number of voltage analogs 24 0 Series

Product Display

1–24S 100A Charge 200A Discharge Lithium Ion Battery BMS Tester

1–24S 100A Charge 200A Discharge Lithium Ion Battery BMS Tester

1–24S 100A Charge 200A Discharge Lithium Ion Battery BMS Tester
