5V 30A Prismatic Lithium Battery Cell Formation Grading Test Machine With Alligator Clips

  • 1
  • 2
  • 3

Payment Terms : T/T,PayPal,L/C,Western Union

After-sales Service : 24/7 Technical Support

Voltage Accuracy : ±(0.5‰ reading+0.5‰ full scale), resolution 1mV

Voltage Measurement Range : DC 0~5V

Model Number : ACEY-BCT530-128P

Current Accuracy : ±(0.5‰ reading+0.5‰ full scale), resolution 1mA

MOQ : 1 Set

Delivery Time : 7~35 Days

Current Range : Charging & Discharging DC 30mA～30A

Price : USD 6600~15480/Set

Number of Channels : 128 Channels

Certification : CE

Place of Origin : China

Supply Ability : 200 Sets/Month

Warranty : 1 Year Warranty with Lifetime Support

Packaging Details : Plywood Case

Brand Name : ACEY

Compatible Battery : Prismatic Cell

Contact Now

5V 30A Prismatic Lithium Battery Cell Formation Grading Test Machine With Alligator Clips
Product Overview

5V 30A 128 Channels Prismatic Lithium Battery Capacity Testing Equipment

The ACEY-BCT530-128P prismatic battery charge and discharge machine with energy-feedback function and alligator clamps is designed for capacity testing of prismatic batteries through cyclic charging and discharging tests. This advanced system converts discharged battery electricity into energy for charging batteries during the process, with excess electricity fed back to the factory power grid or upper power grid through a two-way meter, achieving significant energy savings.

Equipment Features
  • Independent single-point operation with customizable charging and discharging steps for each battery test channel
  • High precision equipment with 0.05% accuracy and 1s/time data recording capability
  • Powerful software with user-friendly operation interface
  • Four-wire test interface ensures high measurement accuracy with modular design for easy maintenance
Compatible Battery Specifications

Prismatic Cells:

  • Length: 80-300 mm
  • Thickness: 15-75 mm
  • Height: 80-230 mm
  • Tab Center Distance: 50-250 mm
Technical Parameters
Parameter Specification
Number of equipment channels 128 channels
External dimensions 1835mm × 931mm × 1840mm
Case color Standard (customizable)
Clamp type Flat head clamp + crocodile clamps
Clamp spring 78.5mm
Working power supply Three phase five wire AC380V±10%, 50Hz
Work environment Temperature -10~40°C, Relative humidity 80%
Voltage measurement range DC 0~5V
Battery voltage range Charge DC 0~4.5V; Discharge DC 4.5~2V
Constant voltage range DC 2~4.5V
Voltage accuracy ±(0.05% reading + 0.05% full), resolution 1mV
Voltage stability ≤(±1mV)
Current range Charge DC 30mA～30A; Discharge DC 30mA～30A
Current accuracy ±(0.05% reading + 0.05% full), resolution 1mV
Current stability ≤(±1mA)
Control mode Computer control with scanning function
Communication mode 485s port communication (port rate 57600)/ TCP
Process settings Up to 32 steps and 256 cycles
Charging mode Constant current; constant pressure; constant current & pressure
Charging cut-off conditions Voltage, current, time, capacity
Discharge mode Permanent flow, constant power, constant resistance
Discharging cut-off conditions Voltage, time, and capacity
Protection function Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery
Sampling inspection cycle 1s-60s optional
Battery sorting Divide according to capacity, time, open-circuit voltage, discharge platform, etc.
Data Processing Capabilities

Records voltage, current, time, capacity and automatically calculates constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage. Provides data curves and cycle diagrams with output in text, Excel, Word, or MDB format data files.

Software Functions
  1. Supports various connections including manual pause continuation, software shutdown continuation, power outage recovery, and communication disconnection recovery
  2. Supports barcode scanning for one-dimensional codes, QR codes, channel jump scanning, and loading scanning
  3. Local test data storage with real-time viewing of current and historical data for each channel
  4. Supports capacity sorting and battery grading
  5. Qualified judgment after testing with pass/NG results based on specified cycle capacity, voltage, time
  6. Comprehensive step protection and global voltage, current, temperature abnormal protection with alarm system
  7. Supports channel parallel operation
  8. Unit conversion capabilities
  9. Database server background storage and MES docking support
  10. Software offline protection
Product Display

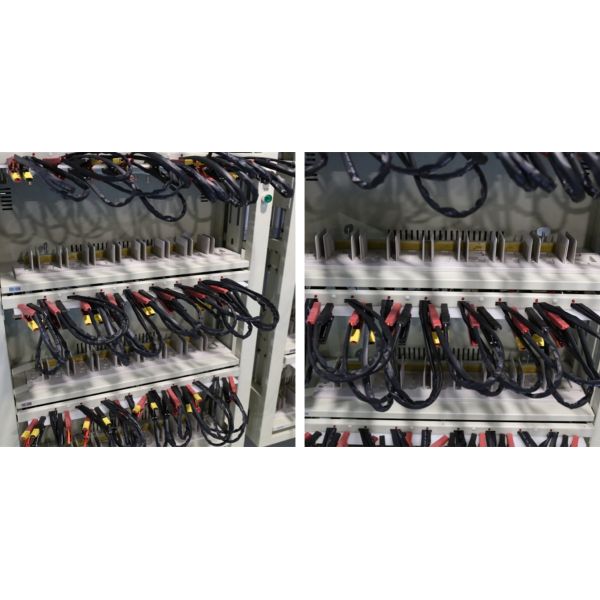

5V 30A Prismatic Lithium Battery Cell Formation Grading Test Machine With Alligator Clips 5V 30A Prismatic Lithium Battery Cell Formation Grading Test Machine With Alligator Clips
